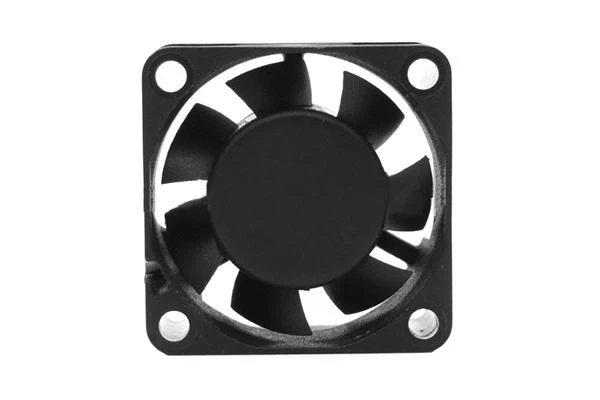

WELLSUNFAN FD03015 DC Brushless Fan

Features of FD03015 5v dc brushless fan

Size: 30x30x15mm (1.2x1.2x0.6inch)

Frame: Plastic UL94V0

Impeller: Plastic UL94V0

Lead Wire: UL1571AWG#28 or Equivalent (+) Red, (-) Black

Bearings: C=Ball Bearing&S=Sleeve Bearing

Life Expectancy: 70,000 Hours at 20℃-Ball. 30,000 Hours at 20℃-Sleeve

Temperature Range: Temperature Range

Operating Temperature: -10*C~70'C (Non-condensing)

Storage Temperature: -40'C~70'C (Non-condensing)

Approvals:UL, CUL, TUV, CE, RoHS

DC FAN Specials: RD, FG, IP54

Rated Voltage: 5V/12V                                  Noise: 21.4~30.8dBA

Rated Current: 0.06~0.25A                          Rated Input Power: 0.72~1.25W

Speed: 6000~10000RPM                            Air Flow: 2.39~4.44CFM

Weight: 12g                                       Mounting: Free Standing

We can also provide kinds of cooling fan china for sale, if you are interested, please contact us.
